HYDRAULIC FLOOR CRANE G-TYPE

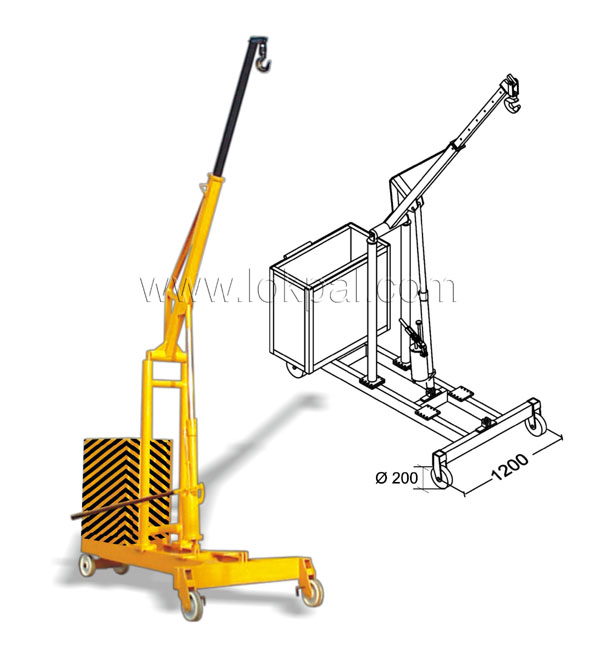

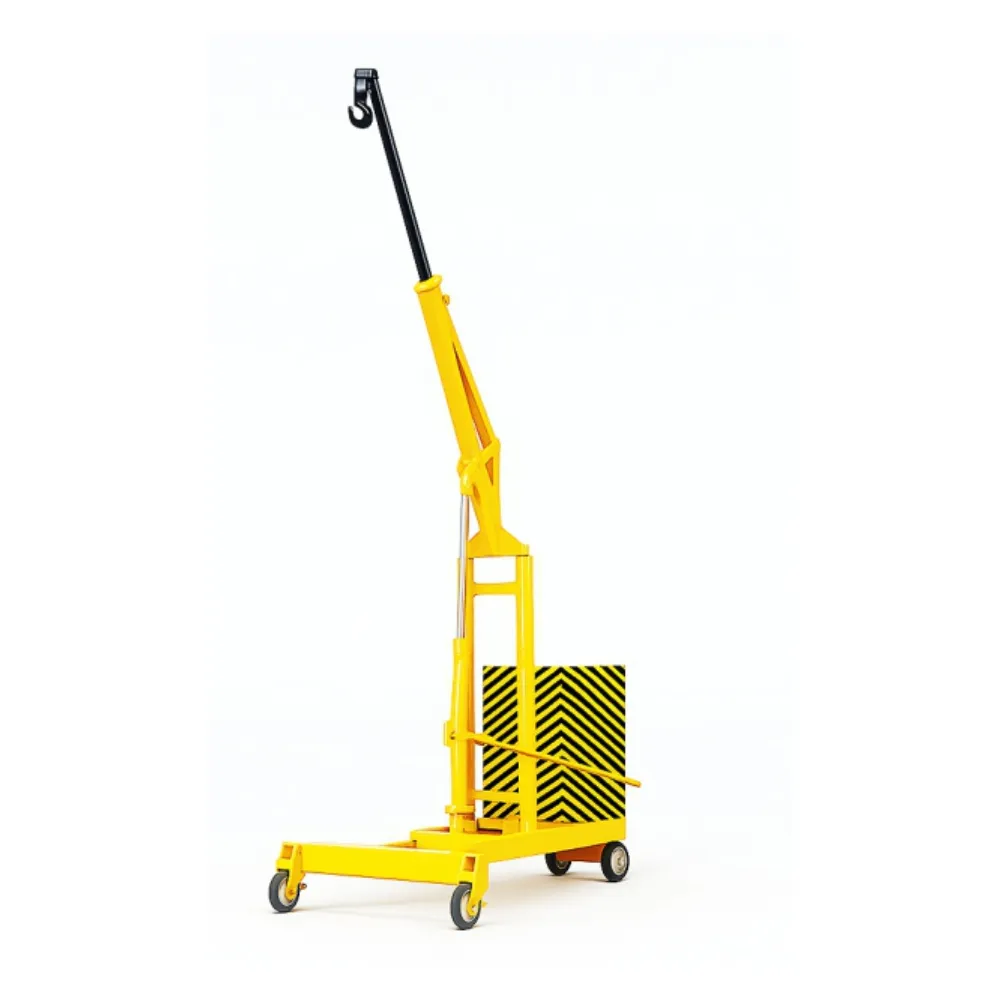

The Hydraulic Floor Crane (G Type) a versatile material handling solution designed for lifting, loading, and positioning heavy loads with ease and safety. Widely used in workshops, warehouses, production facilities, and maintenance applications, this crane ensures efficient handling of machinery, dies, engines, and other heavy components. Its robust construction and hydraulic lifting system make it an essential tool for industrial operations requiring mobility, durability, and precision.

Key Specifications

Model

10 G

20 G

30 G

Capacity

1000 kg.

2000 kg.

3000 kg.

Overall Length "A"

2250 mm

Overall Width "B"

1200 mm

Boom Length (Retracted Boom) "C"

1650 mm

Boom Extension "D"

1050 mm

Overall Height "H"

2000 mm

Maximum Shackle Pin Height (Rates)

3300 mm

Maximum Shackle Pin Height (Extended Boom)

4200 mm

Key Specifications

Model	10 G	20 G	30 G
Capacity	1000 kg.	2000 kg.	3000 kg.
Overall Length "A"	2250 mm	2250 mm	2250 mm
Overall Width "B"	1200 mm	1200 mm	1200 mm
Boom Length (Retracted Boom) "C"	1650 mm	1650 mm	1650 mm
Boom Extension "D"	1050 mm	1050 mm	1050 mm
Overall Height "H"	2000 mm	2000 mm	2000 mm
Maximum Shackle Pin Height (Rates)	3300 mm	3300 mm	3300 mm
Maximum Shackle Pin Height (Extended Boom)	4200 mm	4200 mm	4200 mm

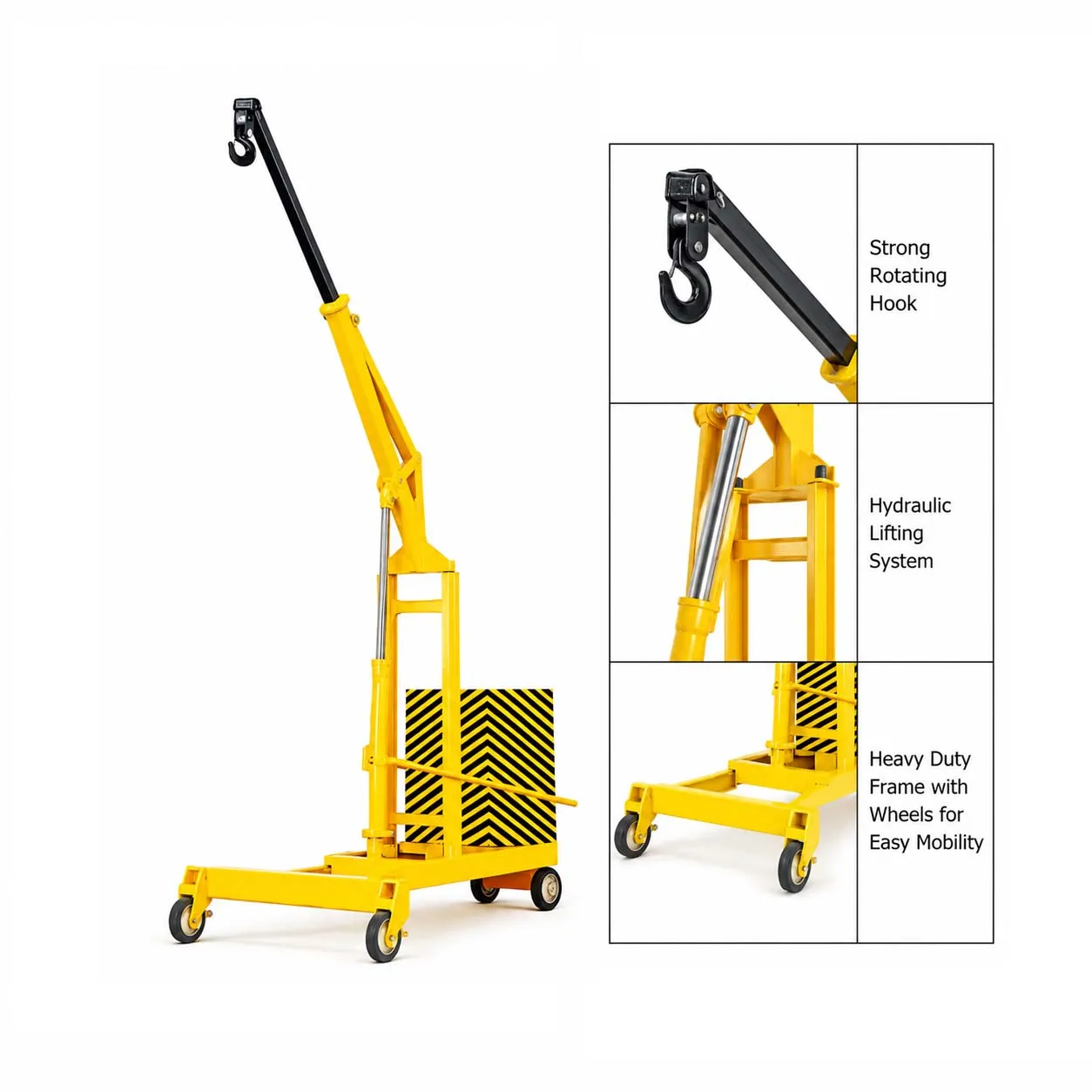

Features

Heavy-duty frame ensures long service life and reliable performance under demanding conditions.
Smooth and controlled lifting of loads, minimizing operator effort.
Designed to handle heavy components safely, depending on model specifications.
Provides extended reach and flexibility for different lifting tasks.
Equipped with swivel castor wheels for easy maneuverability in confined spaces.
Equipped with swivel castor wheels for easy maneuverability in confined spaces.

Product Summary

Strong, robust, sturdy and built to very high standards. All cranes are fitted with 360 degree rotating forged steel hook. Heavy duty thrust bearings and taper roller bearings on steering assembly for easy manoeuverability. Compact and integrated hydraulic system. Five speed variable displacement hydraulic hand pump with replaceable cartridge, valve inserts and built in relief valve to protect against overloading. Heavier loads require a larger lifting effort. Appropriate lifting speeds could be selected to keep the lifting effort at suitable levels. The pump is fitted with a automatic pressure compensated lowering control valve to prevent sudden lowering of the load. The hydraulic cylinder is connected directly to the pump manifold. There is no hose pipe connection, thus reducing the chances of damage due to a burst or cut hose.

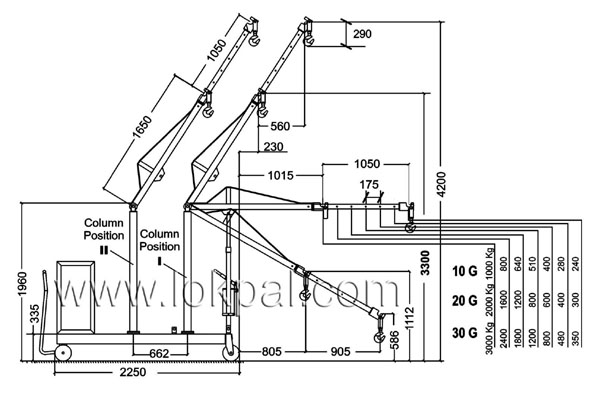

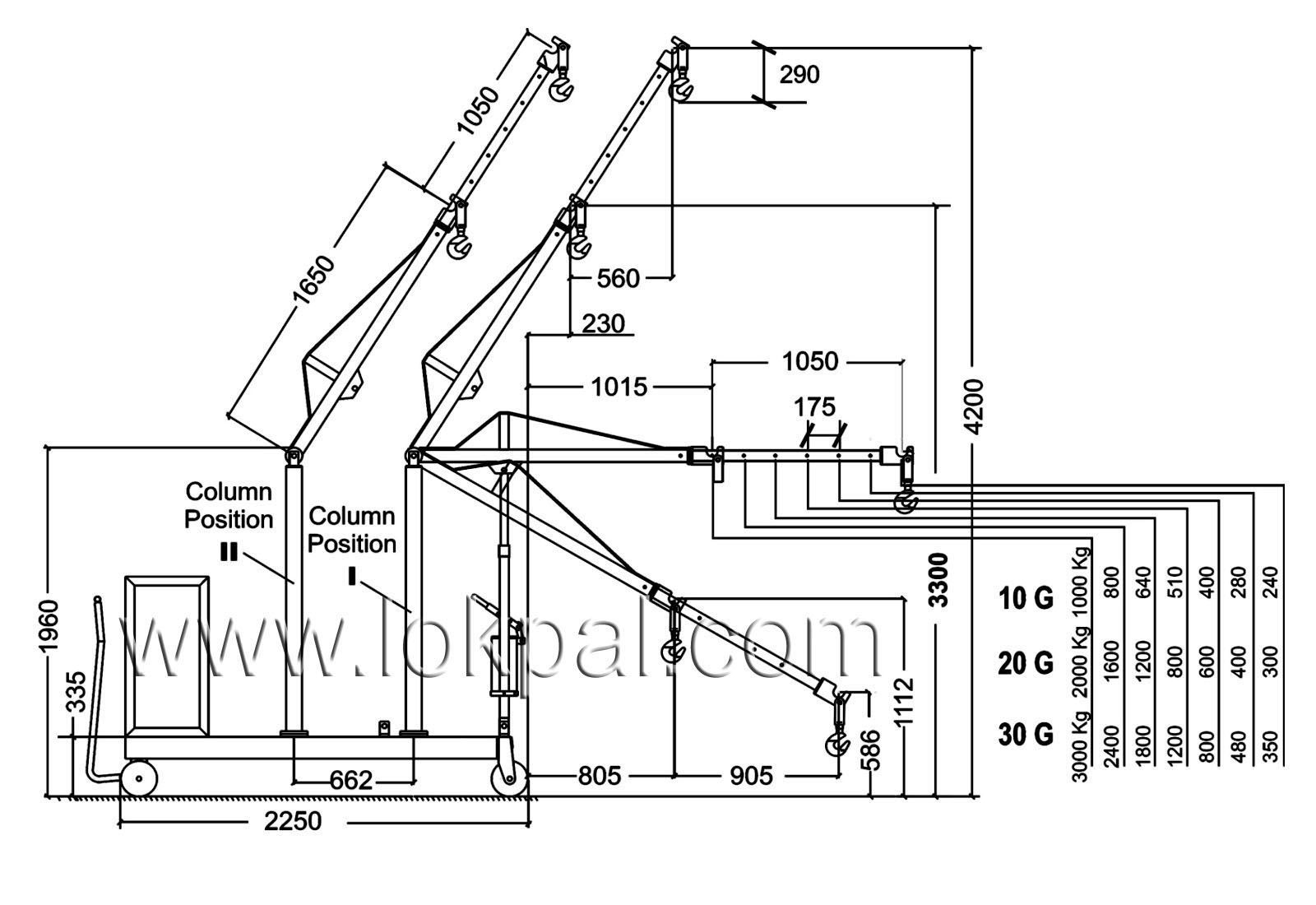

A top of stroke bypass prevents top jamming of the ram at the maximum elevated position. Hard chrome plating on the hydraulic ram protects it from corrosion and rust. All "G" - model cranes have two column positions. Position I requires more counter weights. However it also permits a longer reach as compared to position II. All Cranes are supplied with an empty counterweight tank into which the user has to place appropriate counter weight before use.
