  Home > Material Handling Equipments > Pallet Trucks > Hand Pallet Truck 5 Tons

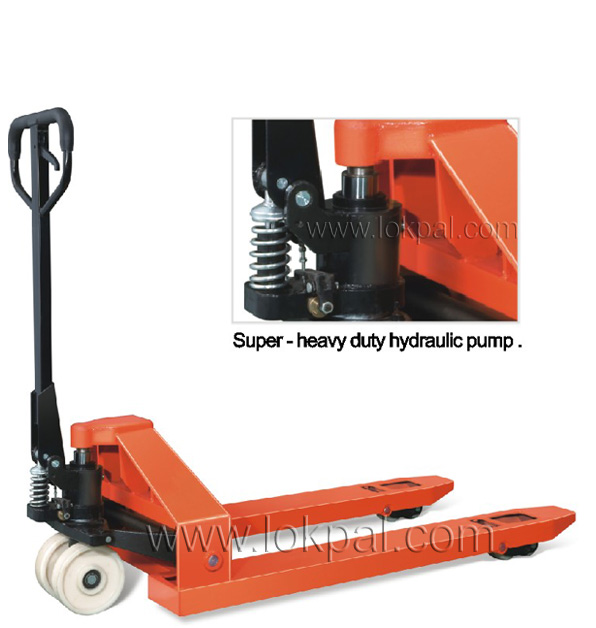

Hand Pallet Truck 5 Ton



Exceptionally strong body for handling with ease, large uneven loads up to 5 tons.

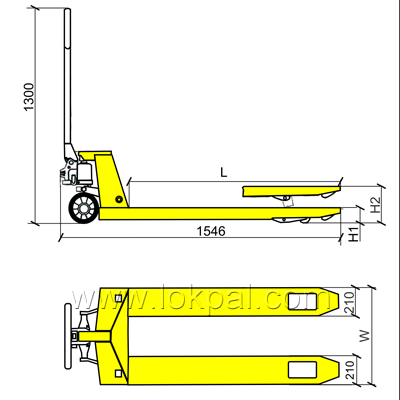

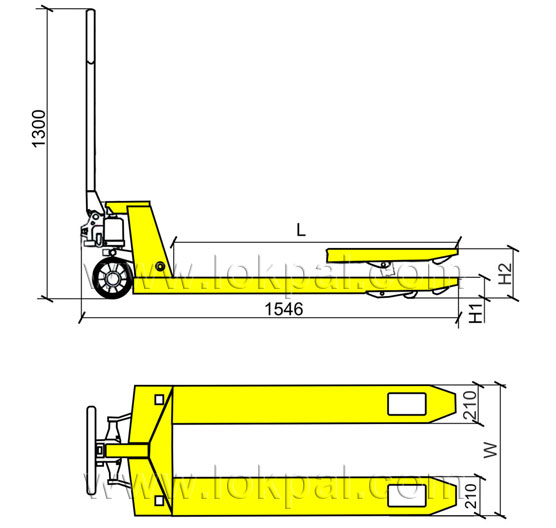

  Specifications:
Model
Capacity
Fork Span
Fork Length Min. Fork Height Max.Fork Height Fork Wheel-tandem Steering Wheel
Kg (W) (L) (mm) (mm) (mm) (mm)
SOLO-5.0S
5000
685 1220 85 195 80x70 180x50
Hand Pallet Truck 5 Ton Features :
Rubber coated handle.
Fully Powder coated body.
Hard chrome plated piston.
Single piece pump with galvanised body.
Large diameter solid steel steering wheel.
Tandem solid steel load rollers.
View large image
View large image

Address: A-6, SEC-3, NOIDA-201301, INDIA | TEL : +91-120-4846800/01/02 | Fax : +91-120-2527591 | Email: info@lokpal.com | Website: www.lokpal.com
Home   |   About Us   |   Video   |   Contact Us   |    Site Map
RANGE OF PALLET TRUCKS

© Copyright 2014, All rights reserved with Lokpal Industries.   Site developed & promoted by : CFCS

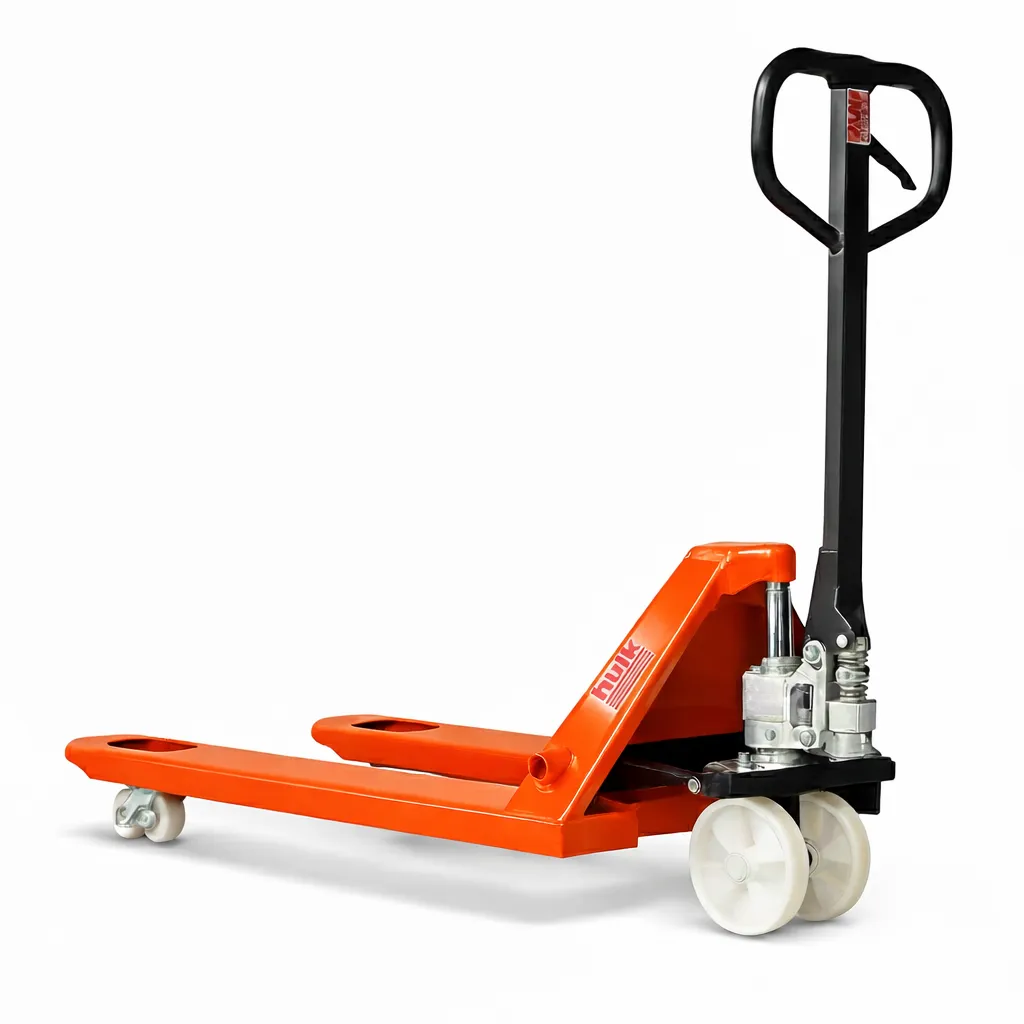

HEAVY DUTY HAND PALLET TRUCK

The Heavy Duty Hand Pallet Truck (5.0 Ton) Is designed for extreme load handling and rugged industrial applications. Built with reinforced steel forks and a powerful integrated pump, this model delivers unbeatable strength, stability, and long-term durability for heavy material movement.

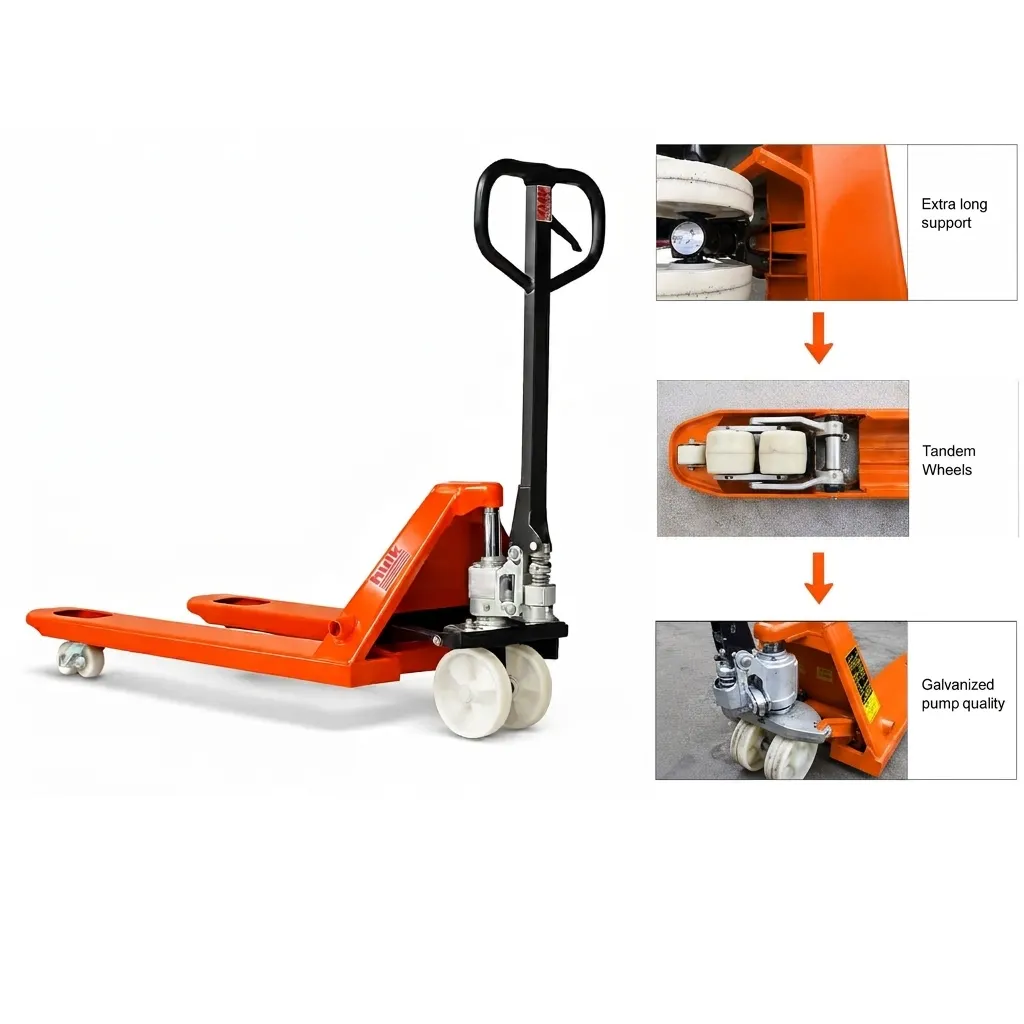

FEATURES
  • Reliable 5.0 ton integrated Pump.
  • Forks made from 16 mm solid flat steel plate.
  • Sold push rod.
  • Optional iron wheel.
  • 6 mm fork thickness.
  • galvanized 40 mm BF pump.
  • Solid Push rod.
  • NYLON wheel Rock Arm with stiffeners Support.
  • Forks with Ribs, Extra long head support.
  • Extended 'L' Type 2.5mm thick stiffeners.
  • Square handle with rubber grip.
  • Full Stiffeners 950 mm Long.
hand-pallet-1
hand-pallet-1
1m-Home-Lifts-3
1m-Home-Lifts-5
thumb 4
Key Specifications
Model SOLO 50 JSN SOLO 50 JLN
Load Capacity 5,000 kg 5,000 kg
Fork Span 550 mm 685 mm
Fork Length 1,150 mm 1,220 mm
Min. Fork Height 85 mm 85 mm
Max. Fork Height 200 mm 200 mm
Colour Orange Orange
Load Rollers Hard Polymer (Twin Rollers per Fork)
Product Summary

The SOLO 50 Series Heavy Duty Hand Pallet Truck is the ultimate powerhouse for operations that push the limits of material handling, engineered to conquer 5,000 kg payloads with unyielding precision and resilience in the most brutal industrial landscapes-from sprawling shipbuilding docks and steel fabrication plants to construction depots and mega-warehouses processing tonnage daily. This beast of a machine, available in JSN (narrow span for tight maneuvers) and JLN (wide span for bulky loads) variants, integrates a battle-tested 5-ton hydraulic pump that surges to full 200 mm height in under 20 strokes, empowering solo operators to relocate massive dies, engine blocks, or palletized rebar stacks without breaking a sweat, all while maintaining a low 85 mm entry clearance for seamless ground-level access.
