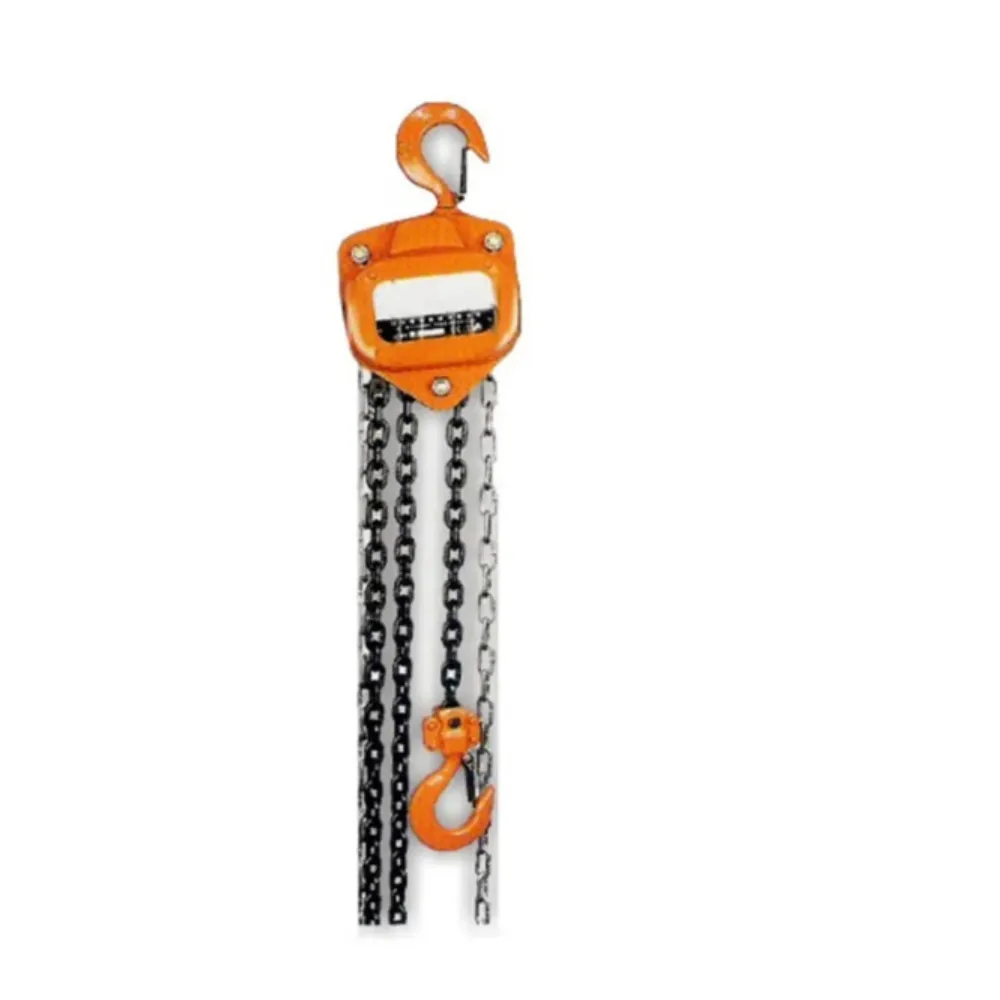

Can be installed anywhere, lifting of material in smooth way, compact, with good quality lifting chain. |
| |
| Model
|
|
|
HSZ-1A |
HSZ-2A |
HSZ-3A |
HSZ-5A |
| Capacity |
|
Ton |
1.0 |
2.0 |
3.0 |
5.0 |
| Std.
Lift |
|
m |
2.5 |
3 |
3 |
3 |
Running
Test
Load |
|
Kn |
15 |
30 |
45 |
75 |
Load Chain
Diameter |
|
mm |
6 |
8 |
8 |
10 |
Strands
of Load
Chain |
|
m/min. |
1 |
1 |
2 |
2 |

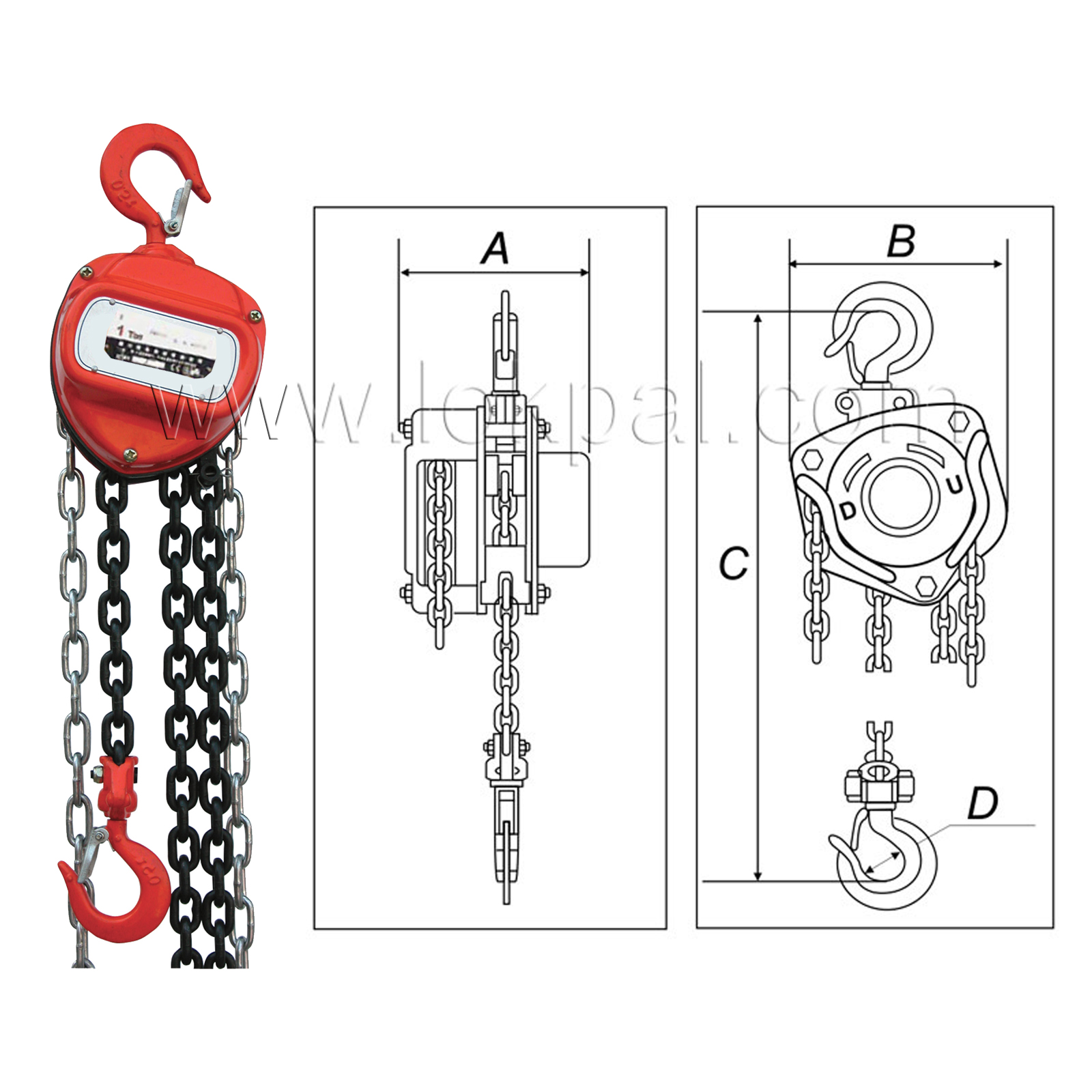

| Dimensions |
A |
mm |
140 |
161 |
161 |
186 |
| B |
mm |
158 |
187 |
210 |
253 |
| C |
mm |
350 |
450 |
550 |
650 |
| D |
mm |
40 |
50 |
58 |
64 |
|
|
|
|
|
| |
|
|
|
|
|
