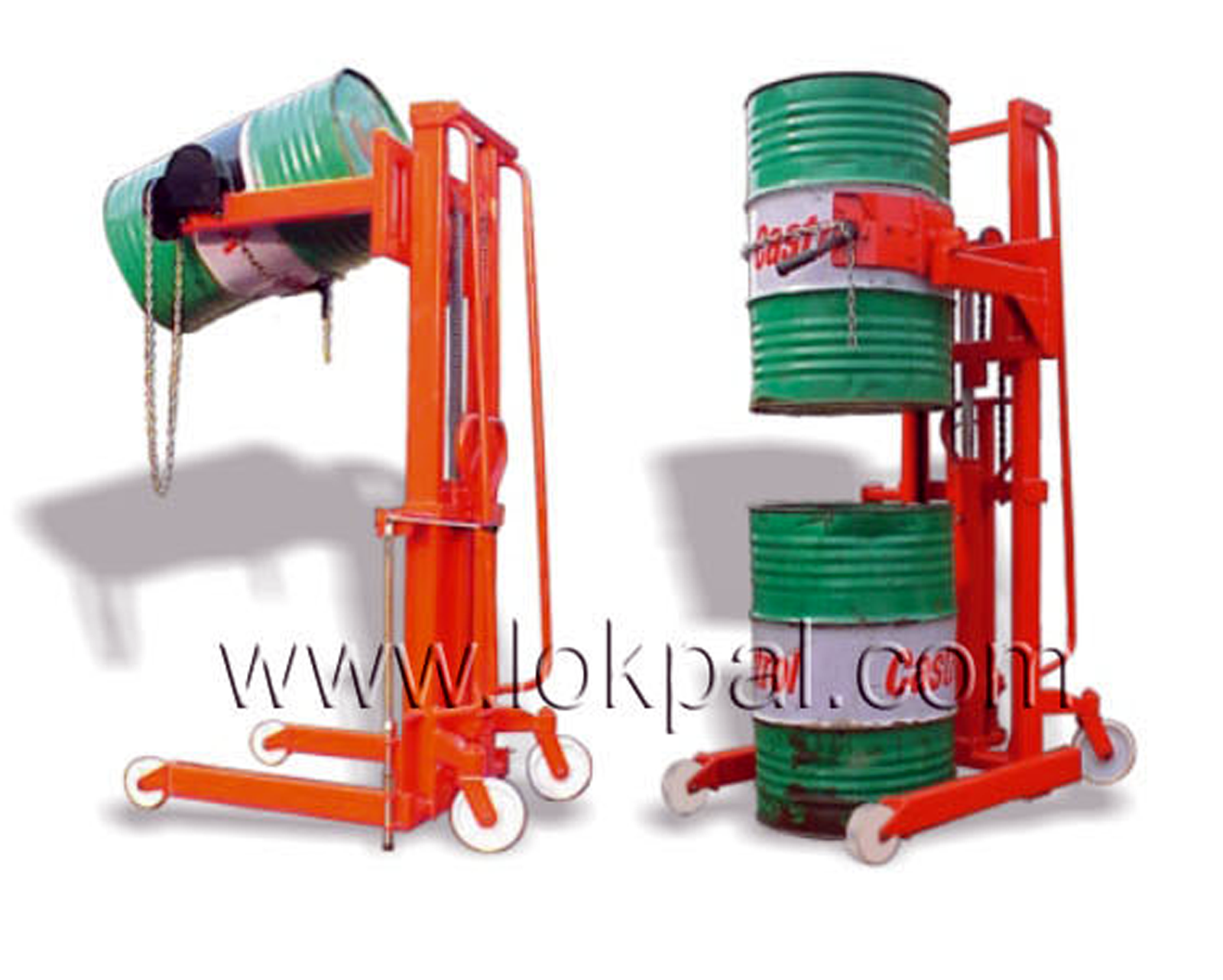

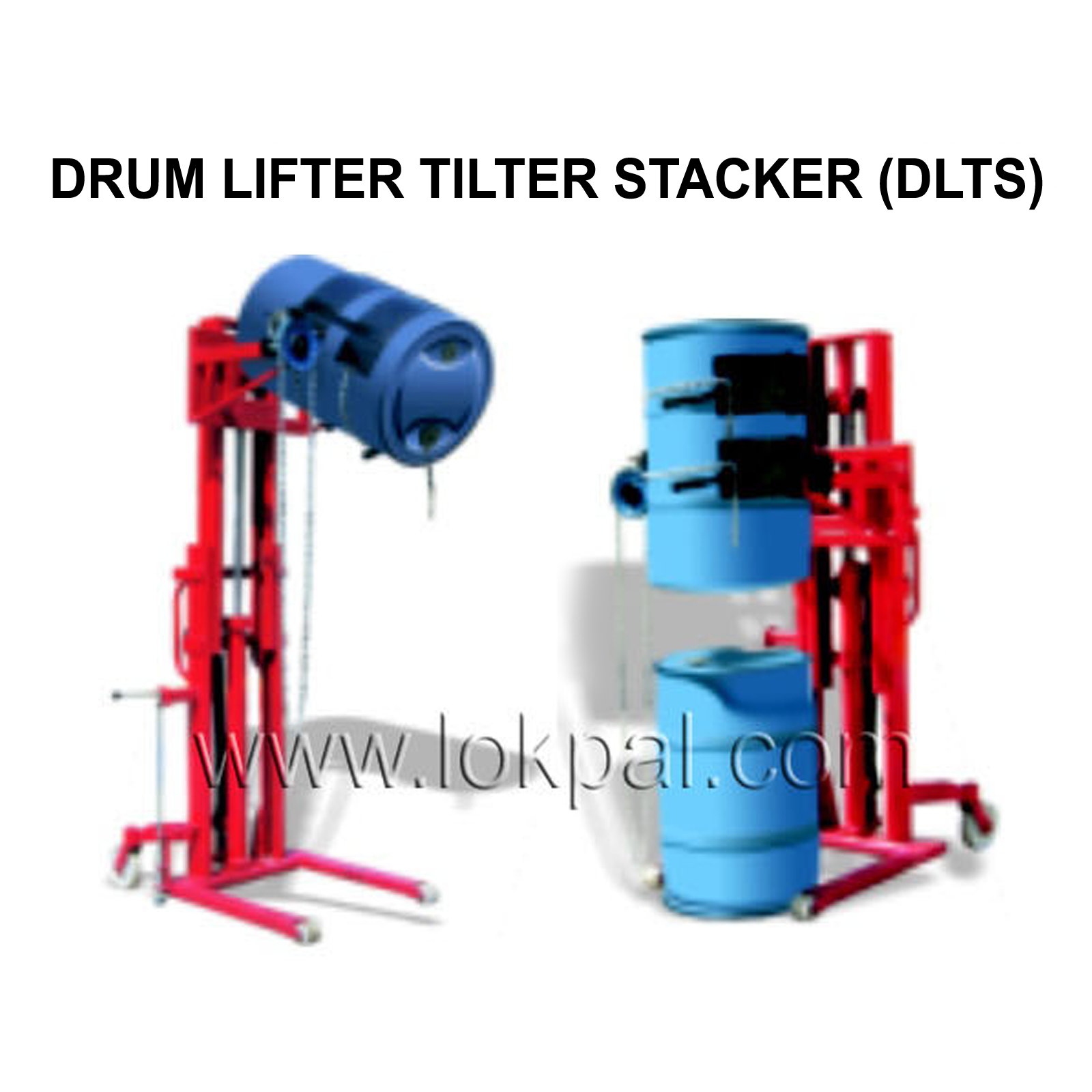

Drum Lifter Cum Tilter Stacker







This Tilter Stacker is suitable for clamping, lifting and tilting of standard 205/215 ltrs. MS drum as well as HDPE drums. The drum with the help of chain connected to the tilting attachment can be rotated 360 degree in the clockwise or anti clockwise direction. The tilting can be stopped at any required intermediate position.

Additionally the equipment can be used for stacking drums one above the other. Compact design, strong and Robust steel construction. Heavy-duty twin chains for better load stability. Top quality hydraulic pump and cylinder.

Heavy duty 1 piece double lipped C Sections forks for greater strength.

  Specifications:

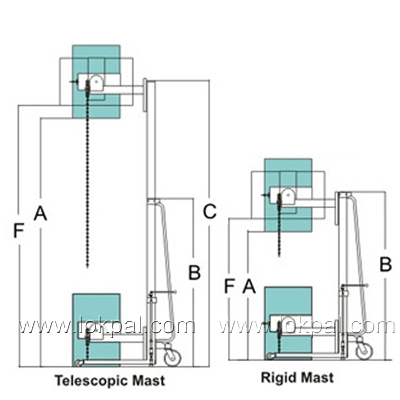

Model
Max. Height of Bottom Drum (Vertical)
Max. Height of Bottom Drum (Horizontal)
Mast Min. Height Mast Max. Height
A F B
Kg
mm
mm mm
RIGID MAST
DLTS-06-11
1050
1190
1530
DLTS-06-13 1300 1440 1780
DLTS-06-16 1550 1690 2030
TELESCOPIC MAST
DLTS-06-20 1950 2090 1530 2480
DLTS-06-25 2450 2590 1780 2980
DLTS-06-30 2950 3090 2030 3480


Features :
Neutral valve allows the operator to manoeuver the equipment safely and effortlessly.
Hydraulic regulator for automatic lowering speed control.
All stackers are fitted with large diameter 8" steering wheels


View large image
