Lokpal Industries
A-6, SEC-3, NOIDA-201301, INDIA
TEL: +91-120-4846800/01/02
FAX: +91-120-2527591 |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| |
| |

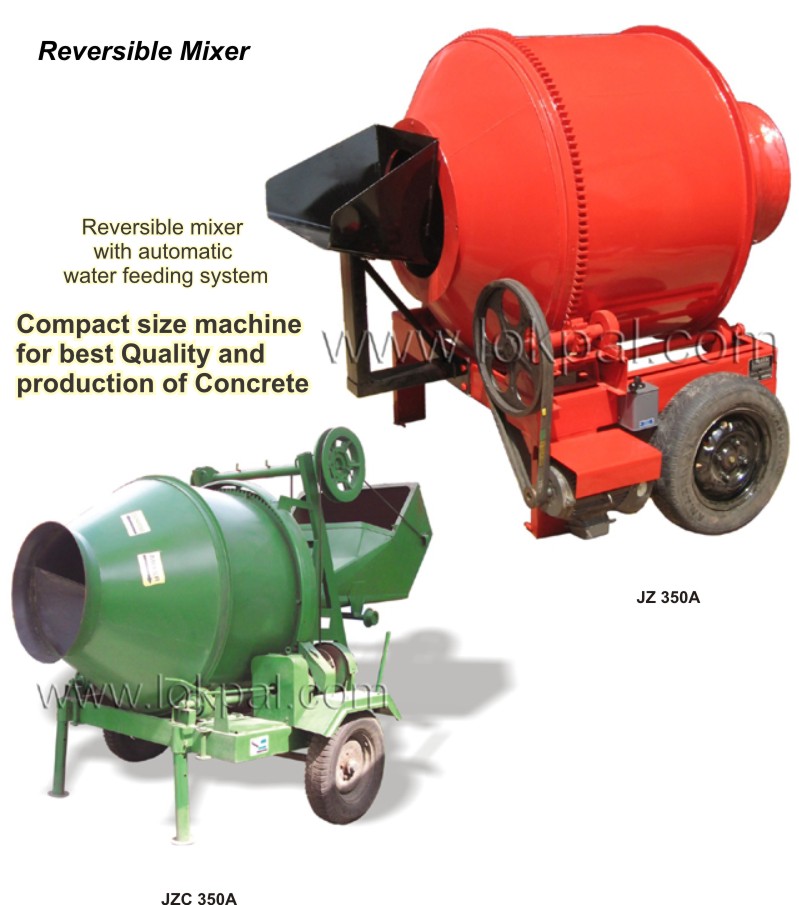

| Model No.
|
JZC 300A |
JZC 350A |
JZ 350A |
| Type |
Reversible Drum
Wit Hopper |
Reversible Drum
Wit Hopper |
Reversible Drum
Wit Hopper |
| Max. Output |
11M³ /Hr |
14M³ /Hr |
8M³/Hr |
| Charging Cap. |
480 Ltr |
560 Ltr |
350 Ltr |
| Discharging Cap. |
300 Ltr |
350 Ltr |
250 Ltr |
| Power Aggregate |
5Kw 415V |
5.5Kw 415V |
3Kw 415V |
| Max. Grain Size |
60 mm |
60 mm |
60 mm |
| Rotation Speed |
14 rpm |
14 rpm |
14 rpm |
| Dimension (LxWxH) cm |
280x200x260 |
300x220x280 |
112x112x140 |
|
| |
| |
| |
| |
| |

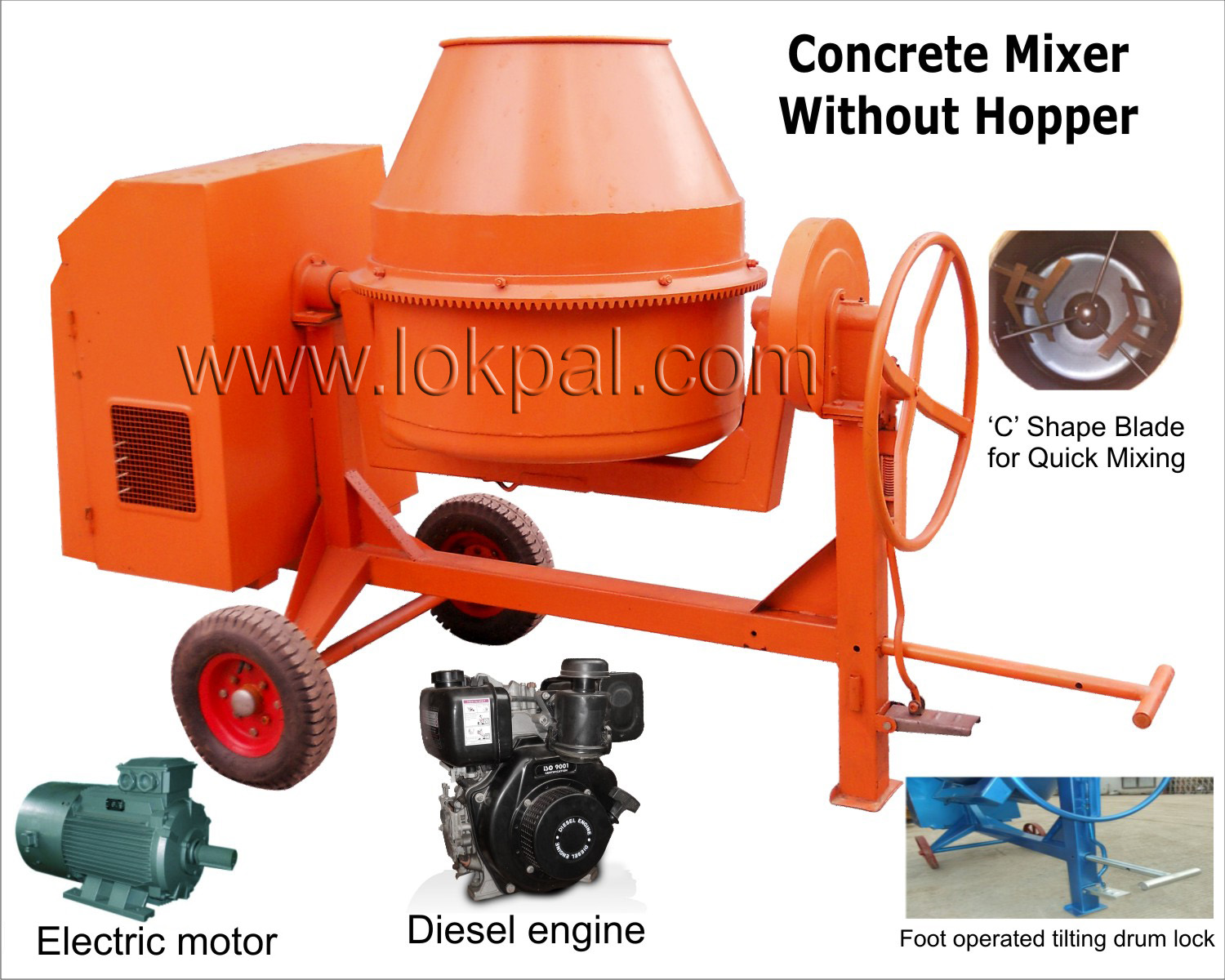

| Model No.
|
TDCM 120 |
| Drum Dia |
740 mm |
| Drum Length |
860 mm |
| Drum Blade Size |
4 mm |
| Drum Opening Size |
460 mm |
| Handle Dia (Rotating Handle) |
600 mm |
| Tyre Capacity (each) |
230 kg Tyre Capacity |
| Wheel Shaft |
41mm (Dia) Length 840mm |
| Wheel Size |
400 mm |
| Drum Gear |
32 mm |
| Required Power |
3 km (4 HP) |
| Mixing Drum Speed |
21-25 RPM |
| Charging Capacity |
300 Ltr. |
| Drum Volume |
350 Ltr. |
| Discharge Capacity |
120 Ltr. |
|
|
|
|
| |
|
|
|
|
|
| Address: A-6, SEC-3, NOIDA-201301, INDIA | TEL : +91-120-4846800/01/02 | Fax : +91-120-2527591 | Email: info@lokpal.com | Website: www.lokpal.com |
|
|
|
| RANGE OF BUILDING CONSTRUCTION EQUIPMENTS |
|
|
|
|
|
| |
|
