Lokpal Industries
A-6, SEC-3, NOIDA-201301, INDIA
TEL: +91-120-4846800/01/02
FAX: +91-120-2527591 |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| Model |

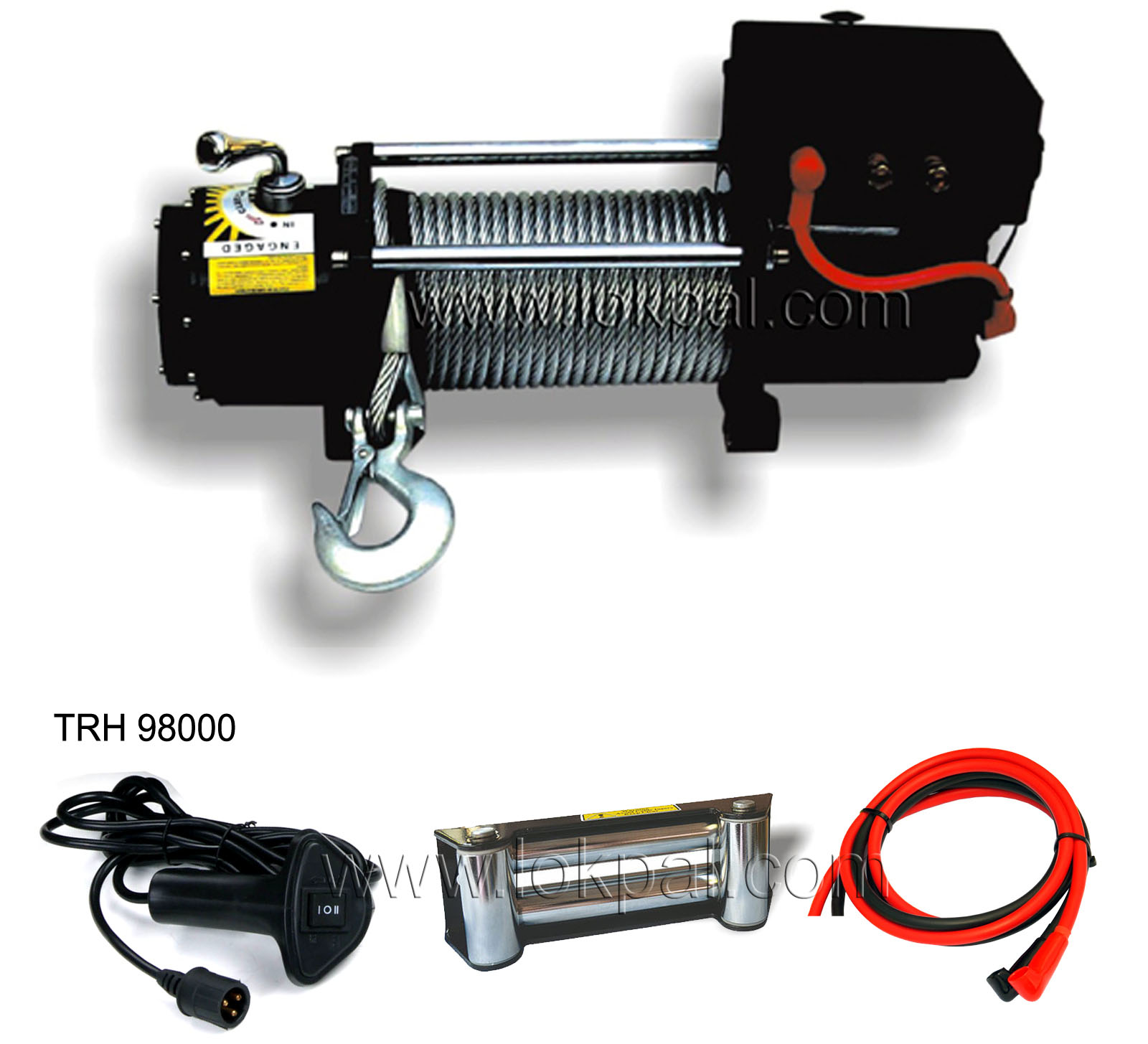

TRH98000 |
| Capacity |
3500Kg |
| Motor |
DC 12V |
| Braking |
Automatic in-the-drum |
| Cable |
29m / Ø 8.0mm |
| Recommended |
650 CCA |
| Battery |
|
| Battery Leads |
1.83m |
| Overall Size |
520x160x218xmm |
|
|
Line Speed & Amp Draw-First Layer
| Line Pull |
Kg |
3626 |
| Line Speed |
m/min |
1.3 |
| Motor Current |
amps |
330 |
| Line Speed & Cable Capacity |
| Layer of Cable |
|
1 |
| Pull Per Layer |
Kg |
362.6 |
| Cable Capacity |
m |
5.0 |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
