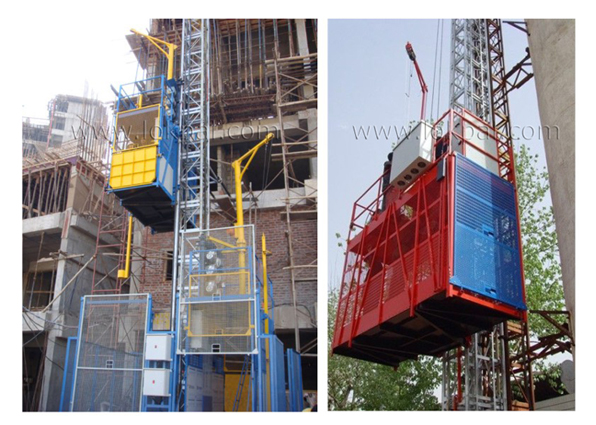

Construction Hoist





The multifunctional building hoist can be used for transporting men and materiel. It is much more efficient and safe compared to the conventional wire rope windlass systems in use, Our hoists use Rack and Pinions for lifting which is very safe, Compared to wire rope types and other conventional methods.
The rack and pinions are made from special alloy steels and are heat treated for strength and wear resistance.

  Specifications:
MODEL
SC100
SC150
Rated Capacity 1000 kg 1500 kg
Cage Size (Outer) 2.1x1.2x2.2 3.0x1.5x2.5
No of Cages 1 1
Height (Max Possible) 150 mtr 200 mtr
Lifting Speed 33m/min 33m/min
Motor Power 2x7.5 kw 2x11 kw
Mast Section Ø60x4.5 thick
450mmx450mmx1508mm
Ø76x4.5 thick
650mmx650mmx1508mm
Voltage 415 V - 50 Hz 415 V - 50 Hz

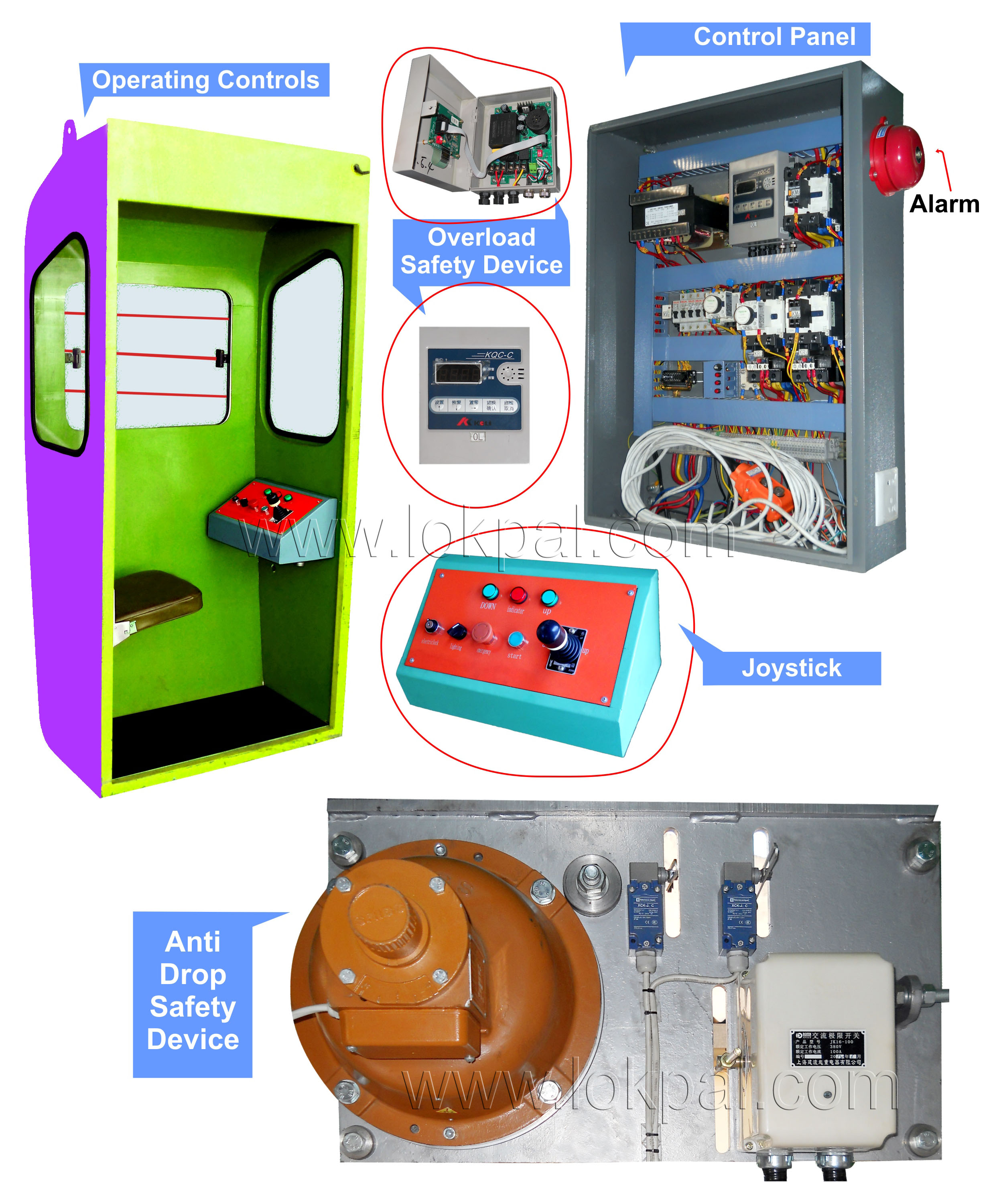

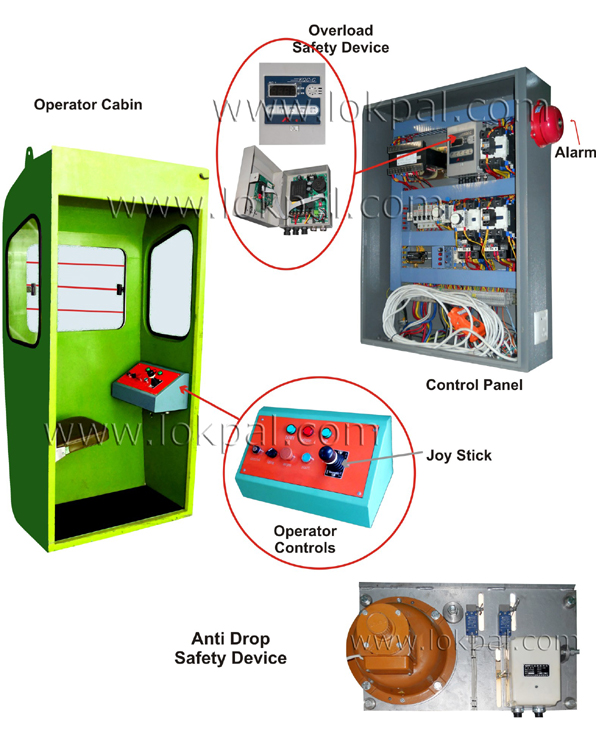

Safety Device Model SAJ30-1.2 SAJ30-1.2





View large image

View large image
